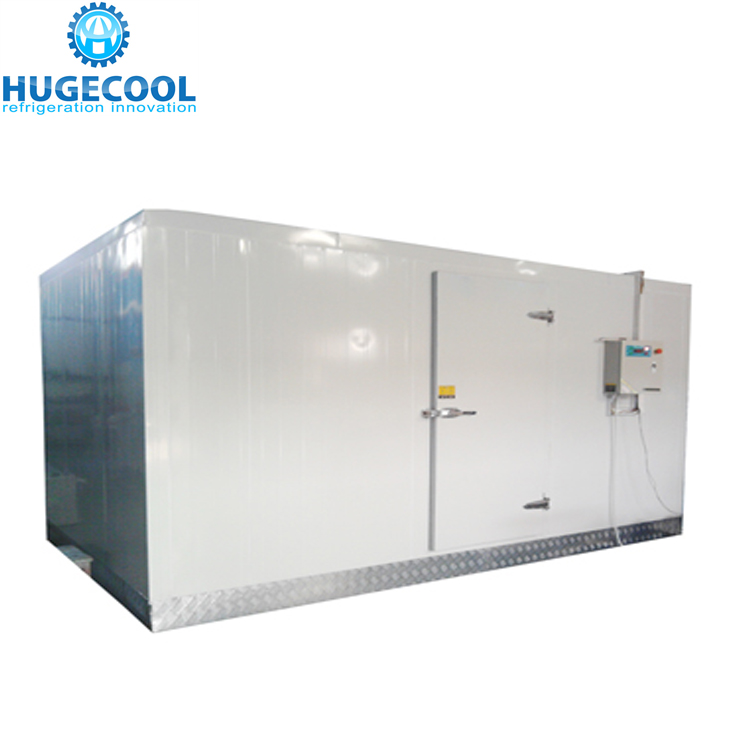

Easy to install Cold Storage Room
Description of Easy to install Cold Storage Room
 | - Size: customized
- Temperature: -5C to 5C cool room , -18~-25C freezer room , -30~-40C blast freezer room
- Refrigeration units: , Copeland, Tecumseh, Carrier compressor are all available
- Door type: hinged door, sliding door and return door are all available
- Panel thickness for Easy to install Cold Storage Room: 100mm ,120mm,150mm,200mm
- Functions: Fresh-keep , fire-proof.
CONTACT US |
Specification
| Sizes of Panel | Length(m) | less than 30m |
| Width(mm) | 960mm |
| Thickness(mm) | 50, 75 ,100 ,120 ,150 ,200mm |
| Heat Conductivity(W/mk) | 0.022 |
| Compressive Strength(N/cm2) | more than 196 |
| Tensile Strength (N/cm2) | more than 24.5 |
| Bending Strength (N/cm2) | more than 24.5 |
| Water Absorption(g/100cm2) | 3 |
| Flame Resistance (only for panels added flame retardant agent) | Self-extinguishing within 3 seconds after taking away flame |
| Material of covering steel | Color painted steel Stainless steel Galvanized steel |
| Cold room temperature | Thickness of pu panel |
| 5~15 degree | 75mm |
| -15~5 degree | 100mm |
| -15~-20 degree | 120mm |
| -20~-30degree | 150mm |
| Lower than -30degree | 200mm |
Features and advantages
1.Convex structure: Panels are joined together by means of tongue and groove and locked together by cam- lock on each side of the panel to ensure air tight joints. There’s no need of rivets, thus reduce the cost and save the time.
2.Easier and faster installation,can be expended or removed in the future.
3.Perfect heat insulation: High density thermo insulated PUR foam up to 38kg/m³or above for perfect cold-room heat insulation efficiency.
4.Various surface steel choices: Color steel sheet/Stainless steel sheet/ Embossed aluminum sheet,The standard metal sheets are all smooth. Standard color of steel sheet is white-gray, others are natural metallic.
5.Low flammable: Low flammable PUR foam is used in the cold room panel, with fire retardant B2 grade.
6.Highly hermetical: Silica gel are used on the panel edge of the joint parts of each sandwich panel to ensure perfect sealing to avoid the cooling air leakage from the cool room or moisture inside the PU insulated panel for the best refrigeration and frozen storage result.

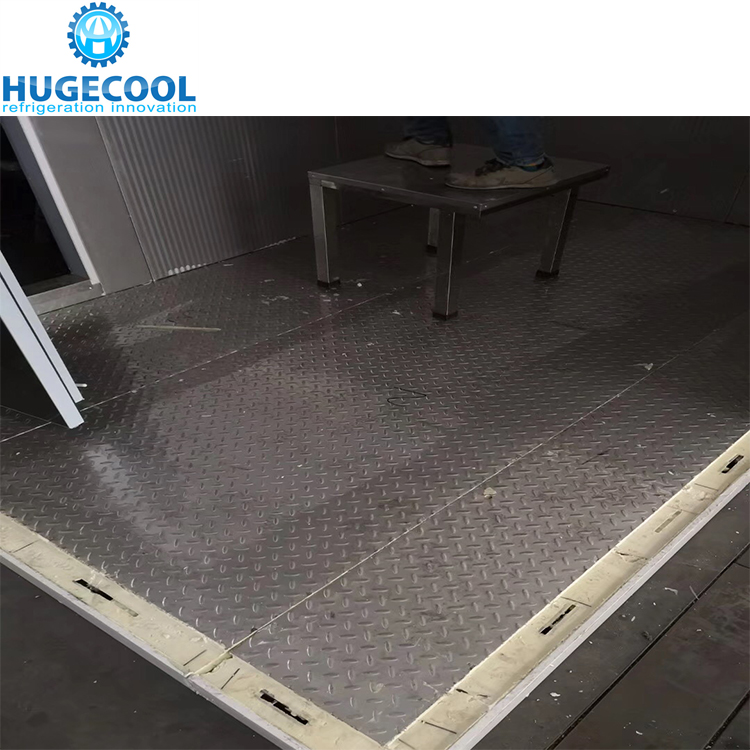

7.Load bearing: The compressive strength is150kpa above, people can walk on the floor panels and allow trolleys can go in and out.
What brand compressor do you prefer for cold room?
 |  |  |

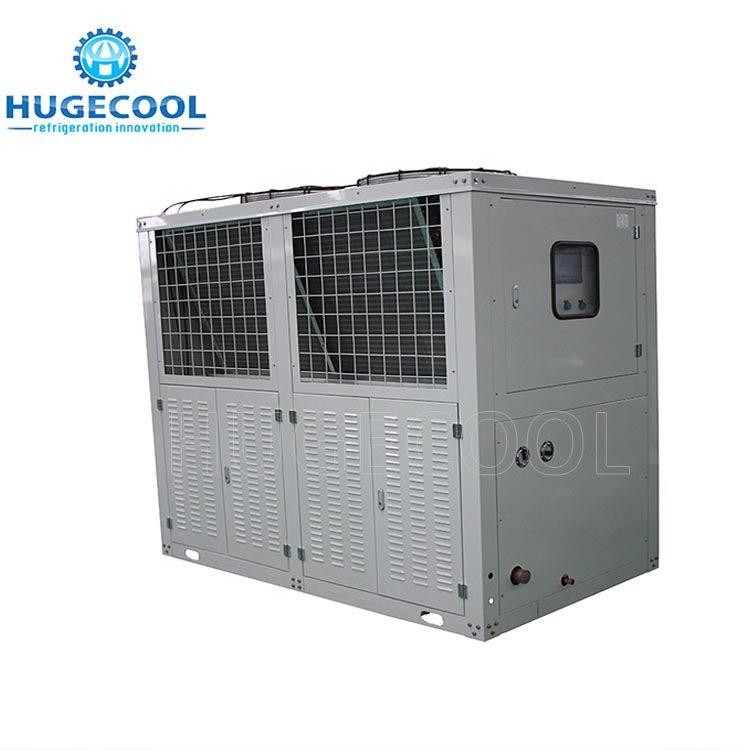

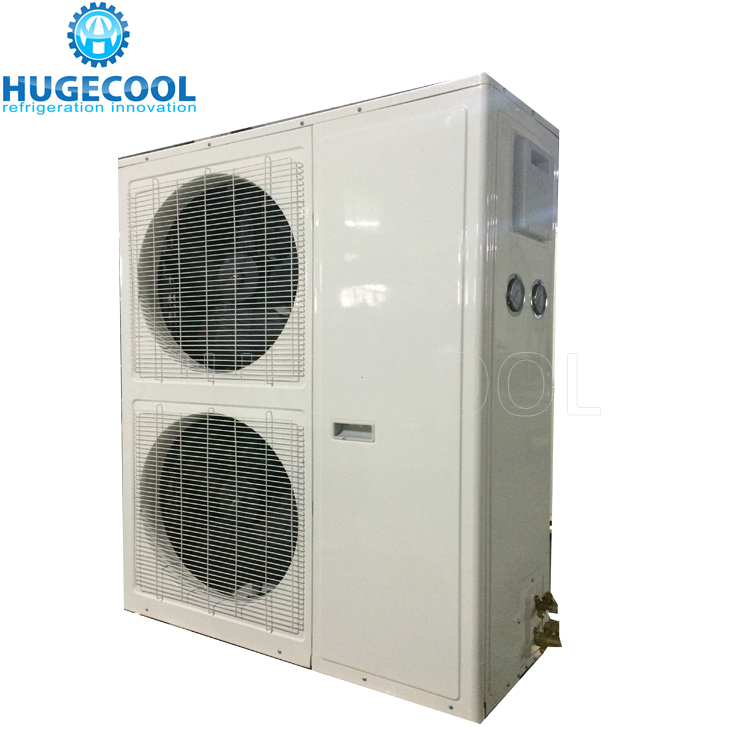

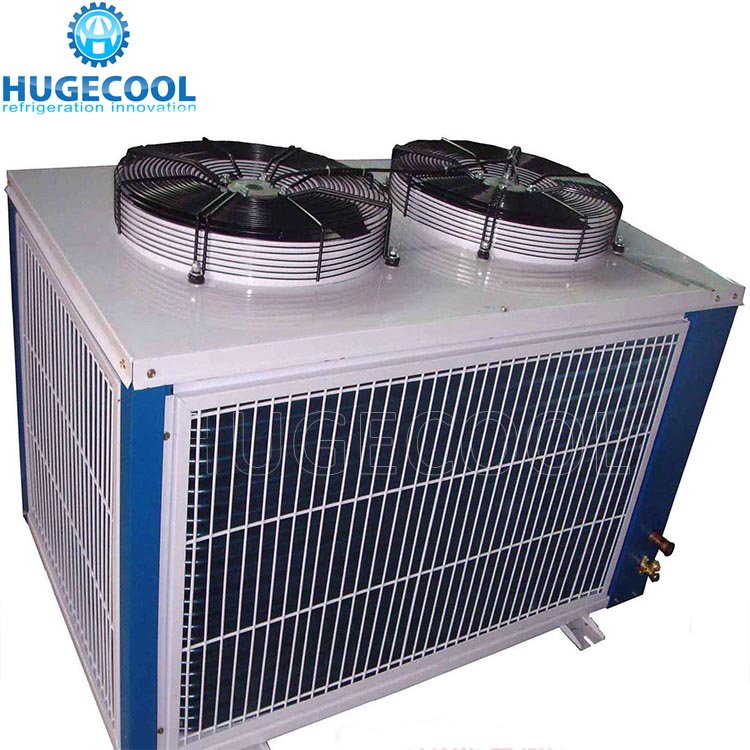

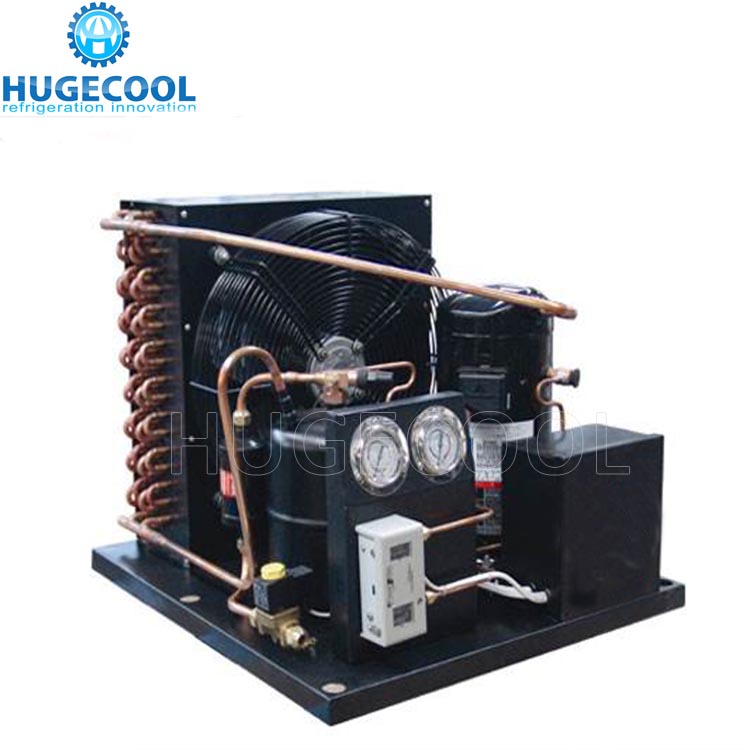

| Copeland side discharge condensing unit | piston open type condensing unit | U type condenser condensing unit |
 |  |  |

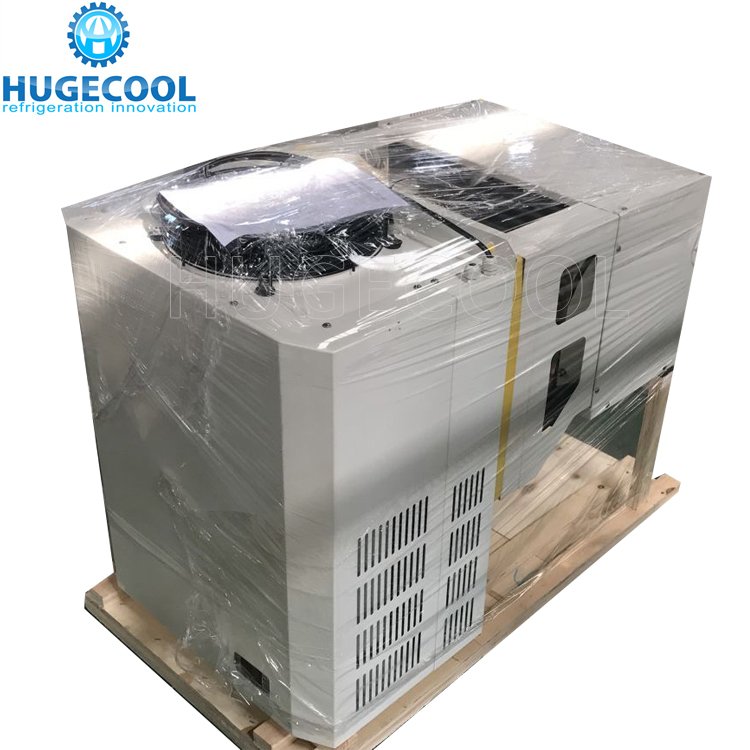

| Copeland scroll open type condensing unit | V type condenser condensing unit | Monoblock condensing unit |

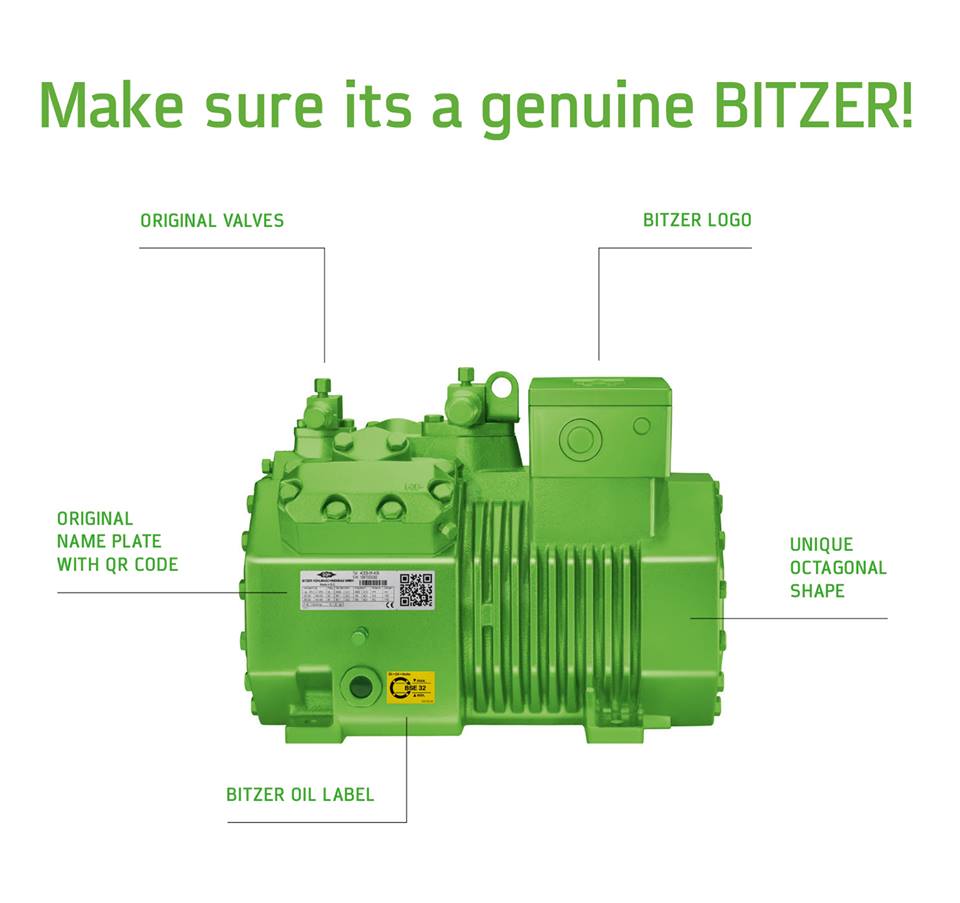

Do you know how to recognize compressor genuine or false?

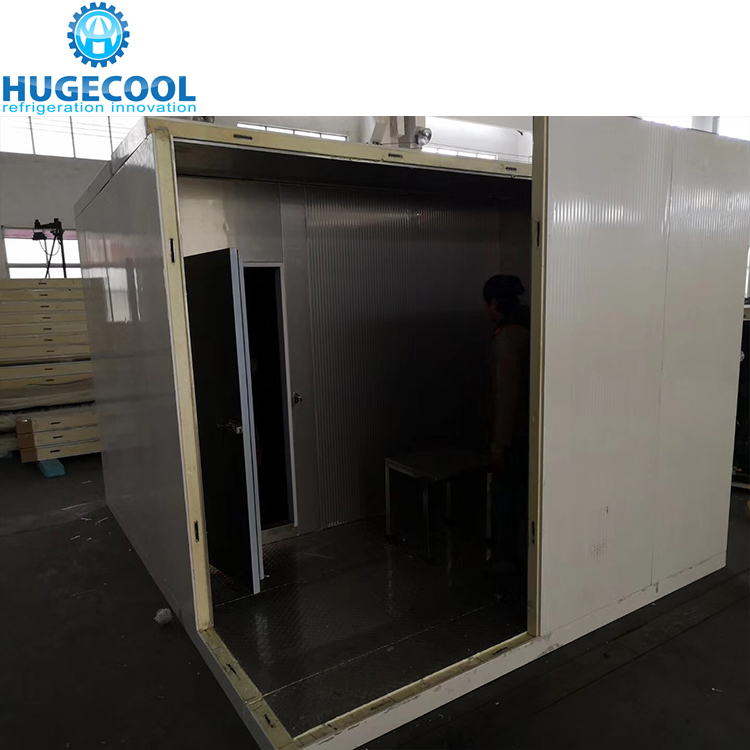

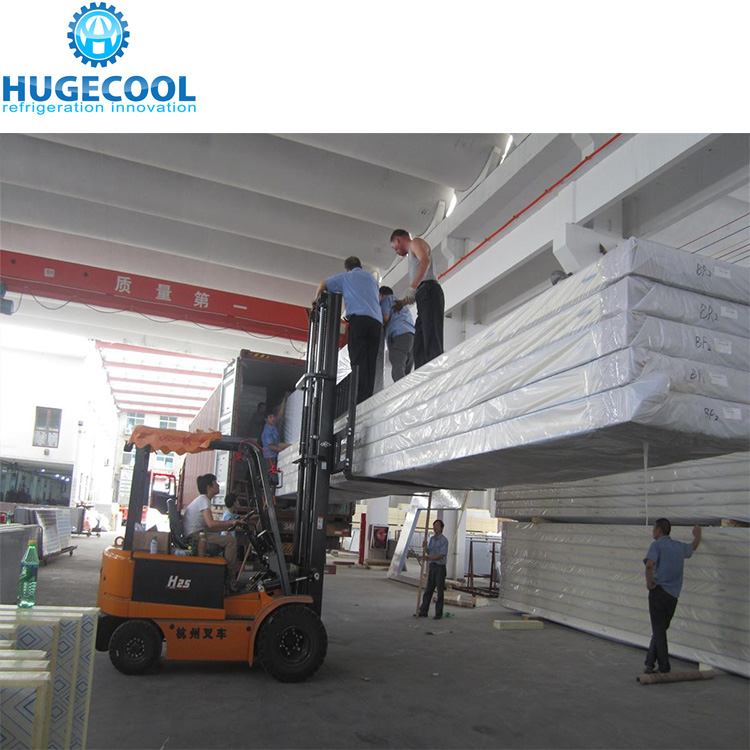

Easy to install Cold Storage Room pu panel pre-assembly before shipment , to make everything perfect .
Do not know how to install cold room?
After placing the order , our designer will design an exact drawing for you , panels are connected with cam-lock , you just need install it accordingly.
1.What's your MOQ for this model?
Our MOQ is 1 set for this model
2.What's your delivery time?
20 to 30 working days after down-payment confirmation.
3. What's your payment term?
L/C at sight or T/T(Down-payment 30%, balance arrange by T/T before shipment).
